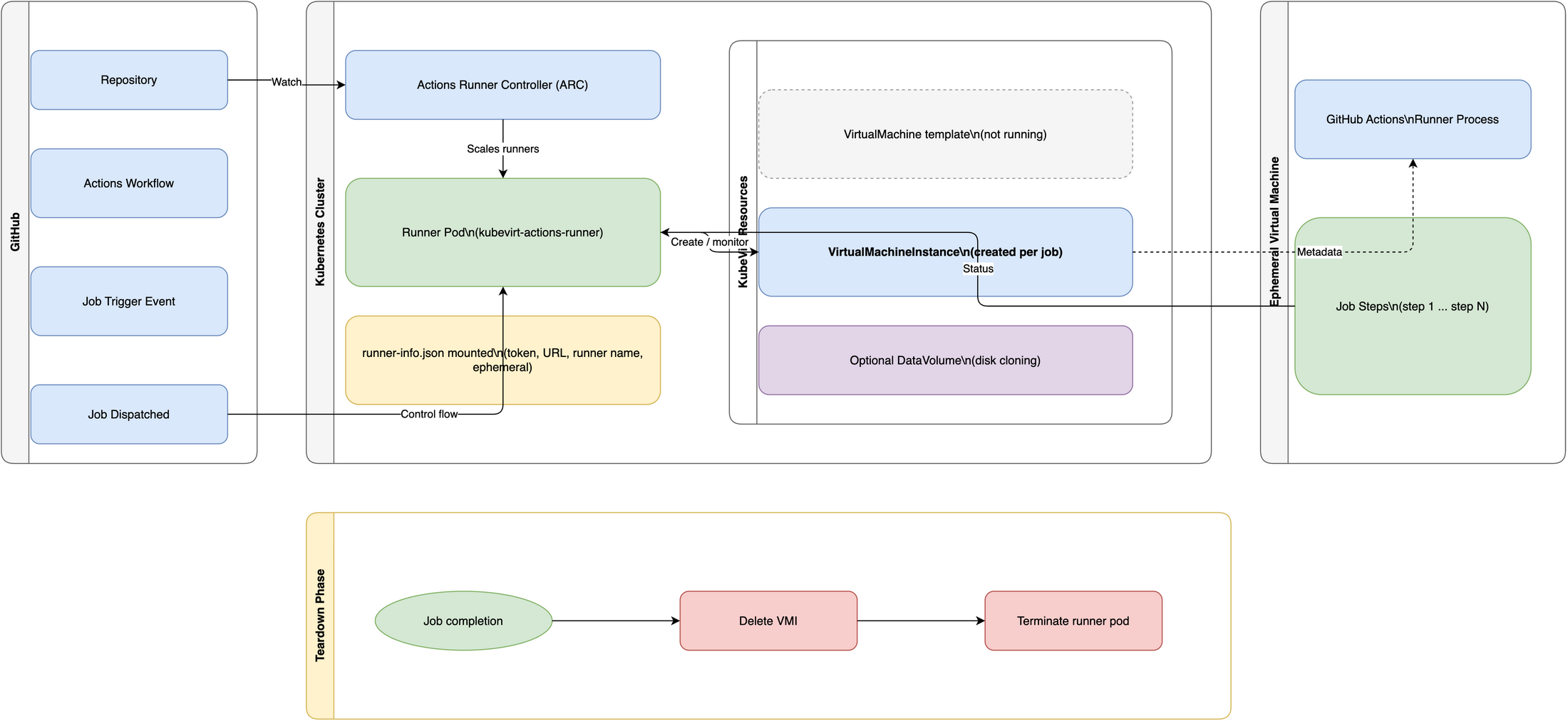

Architecture Overview

This document provides an overview of the architecture used in the testbed for kubevirt-actions-runner.

Components

• kind: Creates a local Kubernetes cluster running in Docker.
• KubeVirt: Enables VM workloads inside Kubernetes.
• VM Template: Cloned dynamically by the runner.
• Demo Workload: Validates VM lifecycle management.

Deployment Flow

The following flowchart describes the complete deployment and runtime sequence:

flowchart TD
  A[Start: Run automation] --> B[Install tools]
  B --> C[Configure cluster]
  C --> D[Deploy KubeVirt operator]
  D --> E[Apply VM template]
  E --> F[Configure RBAC]
  F --> G[Deploy runner scale set]
  G --> H[Runner pod mounts runner-info]
  H --> I[Runner creates VirtualMachineInstance]
  I --> J[VM boots and executes job]
  J --> K[Job completes]
  K --> L[Teardown: delete VMI / pod]
